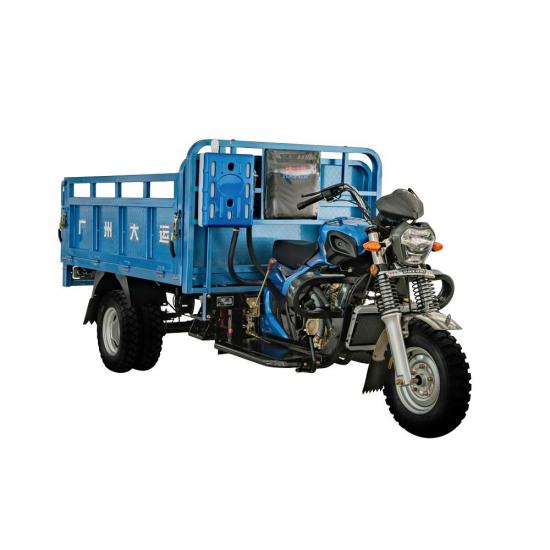

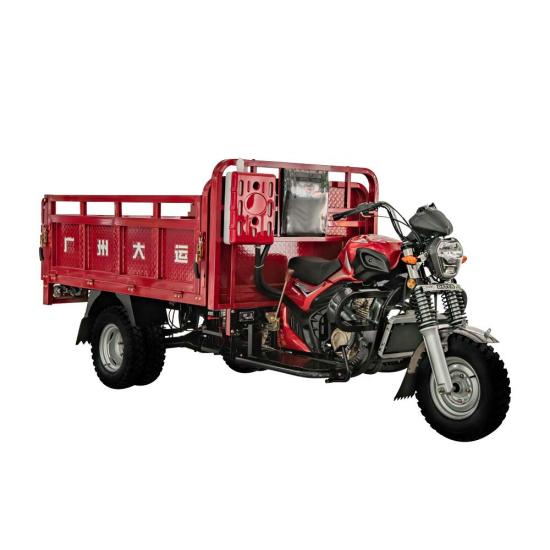

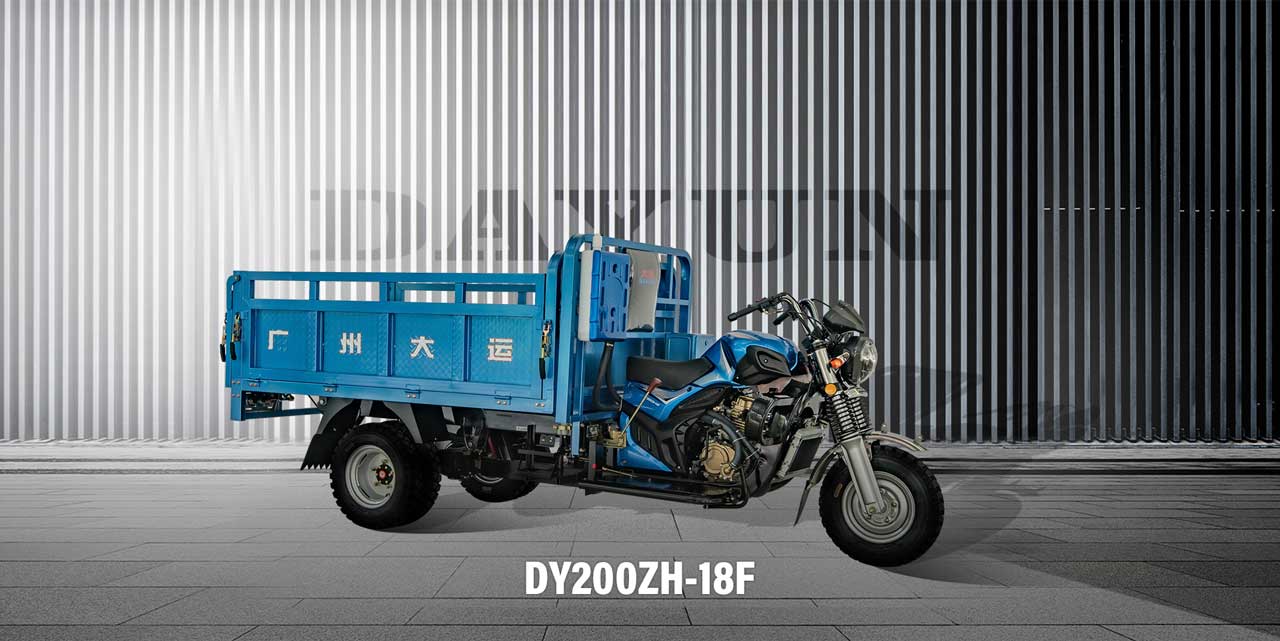

200cc Hydraulic Damping Type Shock and Self-unloading System Cargo Tricycle

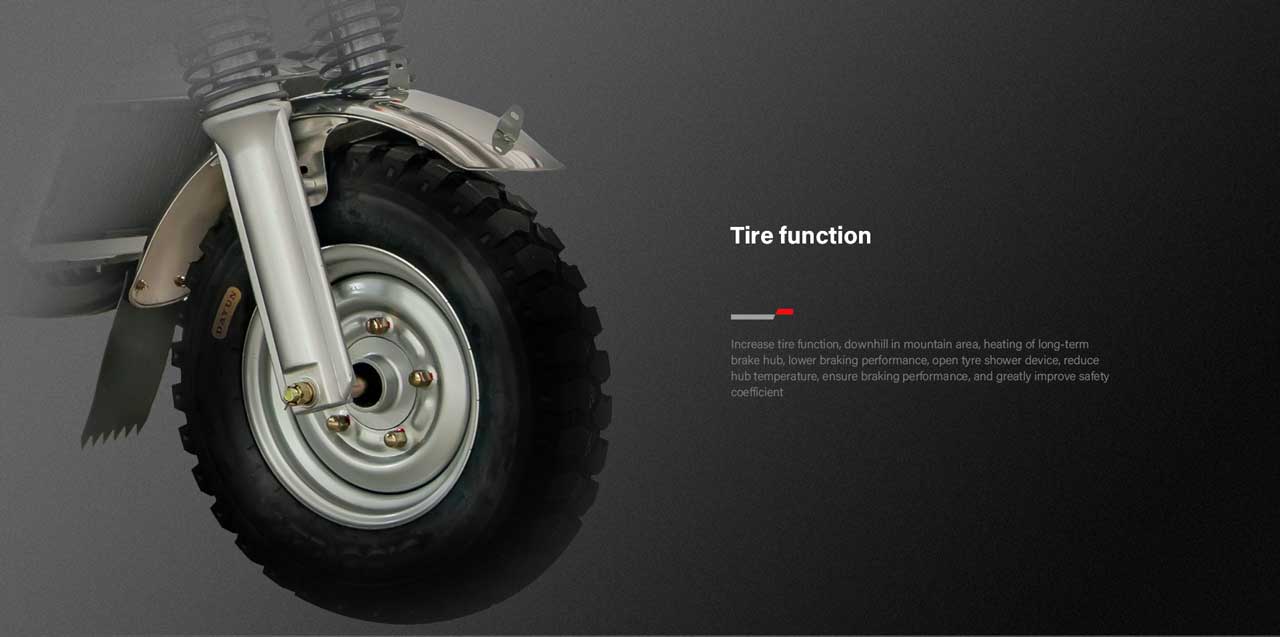

1. A variety of hydraulic damping type three-wheel interchangeable front shock absorbers, the appearance is atmospheric and suitable, can effectively buffer the impact brought by the road surface, and the driving is comfortable and reliable.

2. It adopts 80-tube five-hole full-buoy afterburner queen axle, two-speed main reduction transmission of automobile structure, anti-jumping gear self-locking design, never shifting gears, and smooth shifting.

3. The flow rate of the oil cylinder and the oil pump of the hydraulic self-unloading system can reach 16m³/h. Pressure: 16MPa. The carrying weight is more than 3000KG

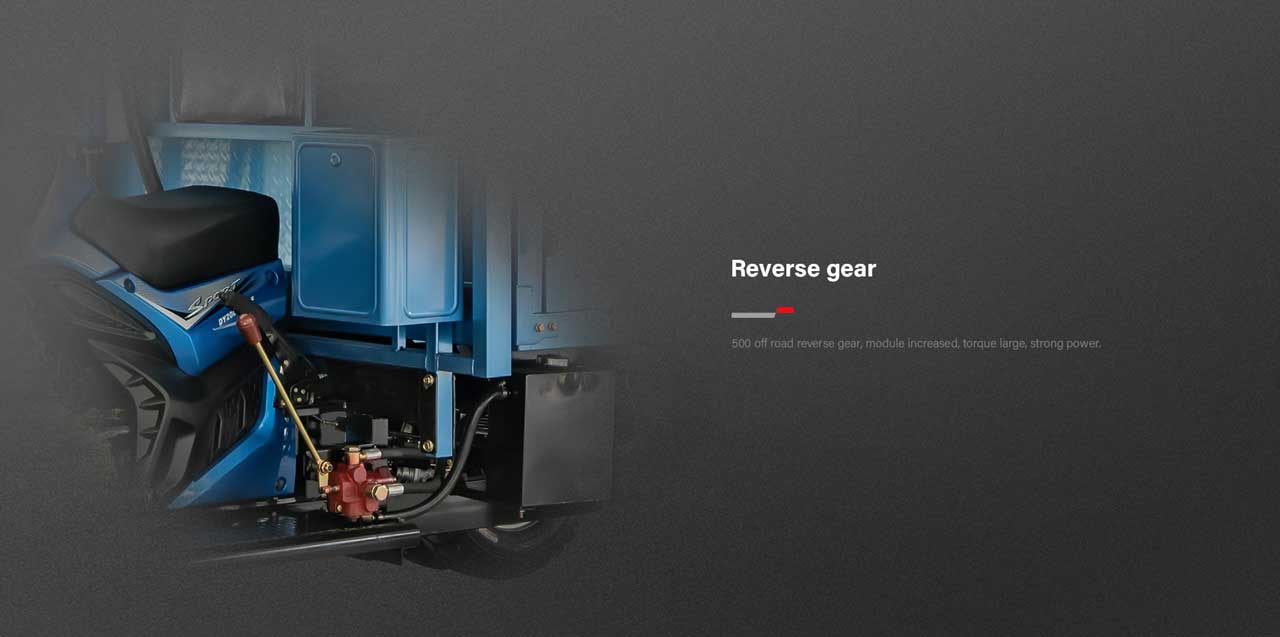

4. Mid-reverse gear integrated booster, equipped with high, low and reverse gears, smooth gear shifting, no impact, and more stable transmission. The high-speed gear can meet the speed requirements of the vehicle, and the low-speed gear increases the driving torque of the vehicle, which improves the vehicle dynamics and climbing ability.

5. Reinforced spring steel plate, using 60Si2Mn plate, after quenching, tempering at medium temperature, shot blasting and other special processing, the yield strength is up to 1176Mpa, the tensile strength is up to 1274Mpa, which fully achieves the design purpose of light load comfort and stronger heavy load. , The bearing capacity of the leaf spring is greatly improved.

6. 11 items to improve the high-quality water-cooled 200CC power.
